food & Beverage factory low price high quality pressure swing adsorption style oxygen generator for sale

1.0 set
MOQ
food & Beverage factory low price high quality pressure swing adsorption style oxygen generator for sale
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Applicable Industries: Food & Beverage Factory, Chemical Engineering, Oil and gas engineering, Medicine, Gold ore, Energy and environmental protection
Showroom Location: None
Condition: New
Usage: Oxygen
Production Rate: 100%
Voltage: 220V/50HZ;380V/ 50HZ
Weight: Actual
Dimension(L*W*H): Actual
Warranty: 3 years
Key Selling Points: energy conservation,environment protection,After sale quality
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 3 years
Core Components: PLC, Pressure vessel

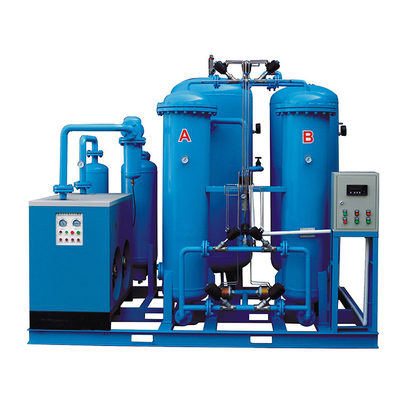

Product name: SYO Type Pressure Swing Adsorption Oxygen Generator
Purity: 93%±2%
Technology: Pressure Swing Adsorbtion (PSA)
Oxygen production: 3-200Nm3/h
Atmospheric dew point: -43℃
Oxygen pressure: 0.1~0.4MPa
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea
After-sales Service Provided: Video technical support, Free spare parts, Online support, Field maintenance and repair service
Πιστοποίηση: ISO9001:2015
Βασικές πληροφορίες
Πιστοποίηση: ISO9001:2015
Πληρωμής & Αποστολής Όροι
Packaging Details: From the engineer's design, then to the production, installation and debugging, and then to the packaging parts, to the final delivery, we do 100% of our own hands.
Supply Ability: 300 Set/Sets per Month
Περιγραφή προϊόντων
Process flow chart

Operating Principles

SYO oxygen production device is carefully developed using PSA pressure swing adsorption principle, with high quality oxygen production molecular sieve as adsorbent, directly separated from the air at room temperature to produce oxygen. Compressed air treated with dry cleaning. Into the adsorption tower with molecular sieve, the air nitrogen, carbon dioxide, water and so on are absorbed by a large number of molecular sieve in the solid phase, and the oxygen concentration in the gas phase due to the small amount of adsorption. When the adsorption of adsorbent reaches saturation, the pressure is reduced so that the zeolite can be desorbed and regenerated, so that the zeolite can be reused. The system sets up two adsorption towers, one adsorption oxygen production tower, one desorption regeneration tower, the use of imported PLC control cycle alternately two towers, in order to achieve continuous production of high-quality oxygen.

Product features

1.The whole machine runs reliably
The organic combination of advanced oxygen production process design, scientific gas distribution structure, unique molecular sieve filling process, special oxygen production molecular sieve protection measures and automatic cylinder compression compensation device is conducive to the long-term use of oxygen production molecular sieve. Continuous production stable use of imported PLC control system and switching life up to 3 million times of imported pneumatic valve, efficient and reliable; Ensure continuous and reliable operation of the device.
2.Advanced control system
PLC control system, automation degree is high, can choose touch screen control system, which USES the human interface design, have shown more function, online shows that nitrogen gas purity, flow, pressure, parameters such as the fault signal, and can change operation parameters online, with remote monitoring, remote transmission signal, and remote key functions, high degree of automation, simple operation, can realize automatic unmanned, and DCS system and users from spreading.
3. Low operation cost
Compared with other methods (including cryogenic oxygen, liquid oxygen, and cylinder oxygen), PSA oxygen production is less expensive to operate in small and medium-sized devices.
Product Description
Model
SYO
Function
Producing oxygen gas with designed flow rate, purity and outlet pressure
Capacity
3~200Nm³/h
Pressure
0.1~0.4MPa(adjustable)
Purity
93%±2%(standard is 93%)
Dew Point
-43℃(under normal pressure)
Features
1.Intelligent, automatic operation, remote/automatic control;
2. Special air distribution system, flow control, automatic compaction technology and other technologies ensure stable operation;
3.Oxygen purity, pressure, flow rate on-line monitoring;
4.Oxygen purity, flow rate are adjustable, meeting customer flexible needs;
Technical index
Specification and model
Oxygen production
(Nm³/h)
Effective air volume
(Nm³/min)
Oxygen purity
（%）
Oxygen pressure
（MPa）
SYO-3
3
0.6
93±2%
0.1
~
0.4
MPa
SYO-5
5
1.0
SYO-10
10
2.0
SYO-20
20
4.0
SYO-30
30
6.0
SYO-50
50
10.0
SYO-60
60
12.0
SYO-80
80
16.0
SYO-100
100
20.0
SYO-150
150
30.0
SYO-200
200
40.0
Details Images
Production Process
Company Profile
Packing & Delivery
FAQ
1. Are you manufacturer or Trade Company?
We are the manufacturer of Oxygen Generator, founded in 2005
2. What's the order oxygen generator process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Contract confirmation---provide correct contract details.
d. Payment terms
e. Production
f. Shipping
g. Installation and commissioning
3.What terms of payment you use?
T/T, L/C etc.
4.Project Location:

How to get a prompt quotation of oxygen Generator?

When you send the inquiry to us, pls kindly send it with below technical information.
O2 flow rate
Nm3/hr( or How many cylinders do you want to fill per day(24hours))
O2 purity
%
O2 discharge pressure
Bar or MPa
Voltages and Frequency
V/PH/HZ
Application
